Wｅｂｏｂを使ってLED三連のONとOFF

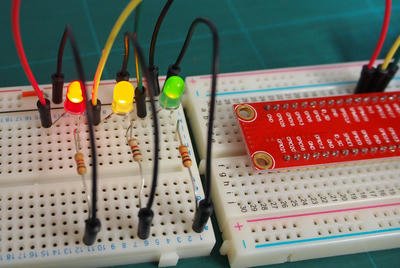

　1.接続
　11-----　+緑LED-　---500Ω--GND
　13-----　+黄LED-　---500Ω--GND
　15-----　+赤LED-　---500Ω--GND



   2.Webobのインストールは以前のブログを参照


　
import time
import RPi.GPIO as GPIO
from webob import Request, Response

Rpin = 15
Ypin= 13
Gpin = 11

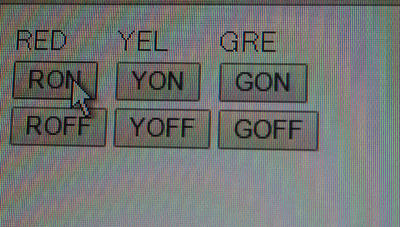

html = """
<form method="post">
<table>
<tr>
<td>RED</td>
<td>YEL</td>
<td>GRE</td>
</tr>
<tr>
<td><input type="submit" name = "button" value = "RON"></td>
<td><input type="submit" name = "button" value ="YON"></td>
<td><input type="submit" name = "button" value ="GON"></td>
</tr>
<tr>
<td><input type="submit" name = "button" value = "ROFF"></td>
<td><input type="submit" name = "button" value ="YOFF"></td>
<td><input type="submit" name = "button" value ="GOFF"></td>
</tr>
</table>
</form>
"""


class WebApp(object):
    def __call__(self, environ, start_response):

        req = Request(environ)
        if req.path == '/':
            button = req.params.get('button','')

            if (button=='RON') :
                GPIO.output(Rpin,GPIO.HIGH)
            if (button=='YON') :
                GPIO.output(Ypin,GPIO.HIGH)
            if (button=='GON') :
                GPIO.output(Gpin,GPIO.HIGH)
            if (button=='ROFF') :
                GPIO.output(Rpin,GPIO.LOW)
            if (button=='YOFF') :
                GPIO.output(Ypin,GPIO.LOW)
            if (button=='GOFF') :
                GPIO.output(Gpin,GPIO.LOW)
            resp = Response(html)
        else:
            resp = Response()

        return resp(environ ,start_response)

application = WebApp()

def setup():
    GPIO.setmode(GPIO.BOARD)
    GPIO.setup(Rpin,GPIO.OUT)
    GPIO.setup(Ypin,GPIO.OUT)
    GPIO.setup(Gpin,GPIO.OUT)



def destory():
    GPIO.output(Rpin,GPIO.LOW)
    GPIO.output(Ypin,GPIO.LOW)
    GPIO.output(Gpin,GPIO.LOW)
    GPIO.cleanup()




if __name__ == '__main__':
  setup()
  from wsgiref.simple_server import make_server
  port = 8080
  httpd = make_server('',port,application)
  #print ('serving http port %s...' % port)


  try:
    httpd.serve_forever() #serverkidou
  except KeyboardInterrupt:
    destory()
